Monitoring

The foundation of professional audio production

Why Accurate Monitoring Matters

Reliable hearing is essential for effective mixing
Professional techniques work in less-than-ideal spaces
Objective listening decisions matter more than equipment quality
Poor mixes often result from hearing problems, not technique problems

Famous Studios: Ideal Mixing Environments

Real-World Studio Examples

Choosing Studio Monitors

Quality monitors provide accurate frequency response (but cost more)
Smaller nearfield monitors often outperform large speakers for mixing
Focus on stereo quality over surround sound on limited budgets
Avoid hi-fi speakers—use active/powered monitors instead
Get familiar with your specific monitors through reference tracks

Choosing the right equipment for monitoring is crucial as it provides the primary feedback for all mixing decisions. Quality monitoring systems, which offer a clear and even frequency response, are often expensive but vital for accurate audio representation.
Volume isn’t as critical as audio quality in studio monitors. Famous mix engineers often prefer smaller, nearfield monitors for a more accurate sound, rather than large, powerful speakers.
For small studios, it’s advisable to focus on achieving high-quality stereo sound rather than investing in a complex surround setup, especially when working with a limited budget.
Hi-fi speakers, designed to enhance audio, aren’t ideal for studio work where identifying flaws in a mix is essential. Active or powered speakers are a better choice due to their convenience and built-in amplification tailored to the speaker’s design.
Monitor choice is subjective, and getting accustomed to the specific sound of your chosen monitors is part of the learning process. Familiarity with your monitors, aided by reference recordings, is key to effective mixing.

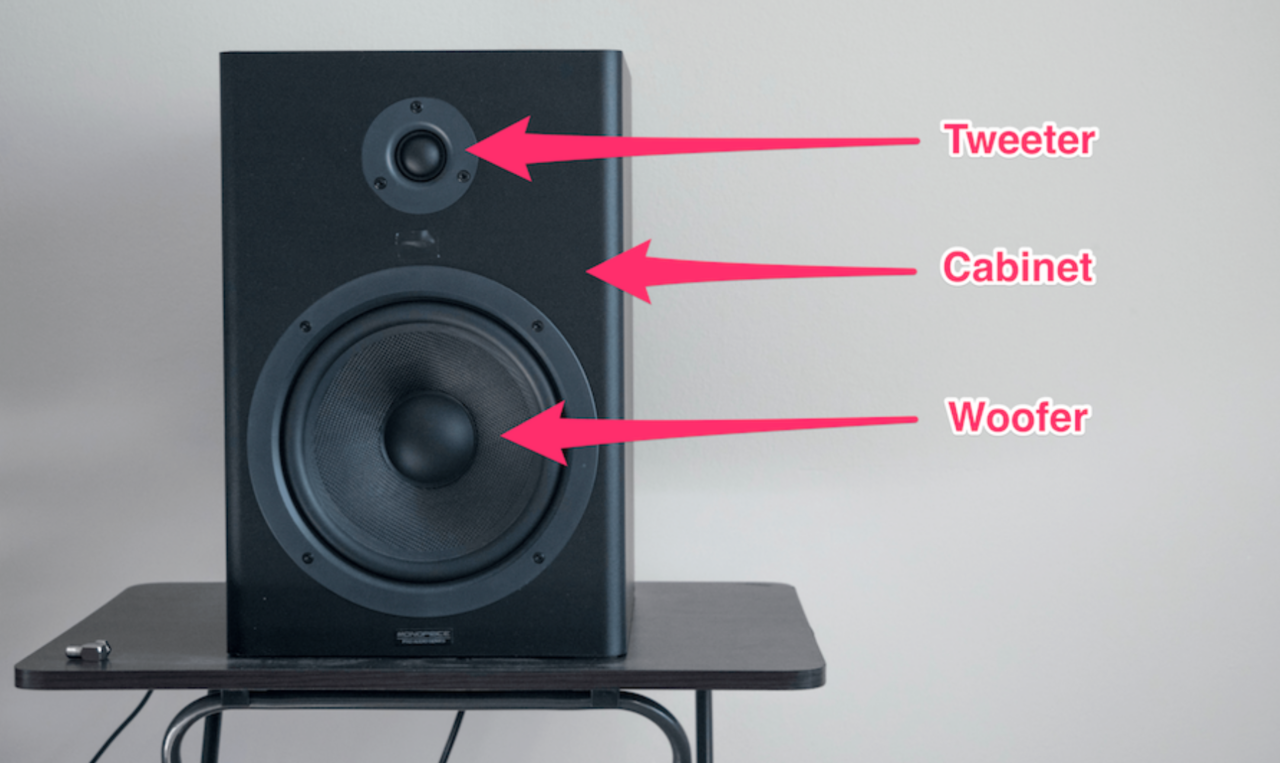

Studio Monitor Anatomy

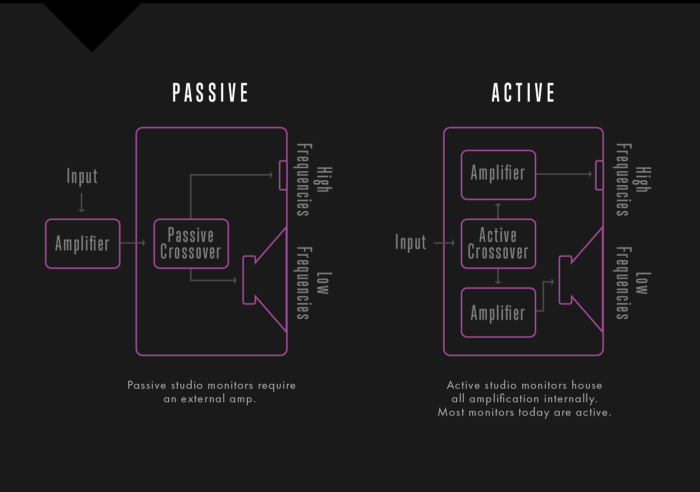

Active vs Passive Monitors

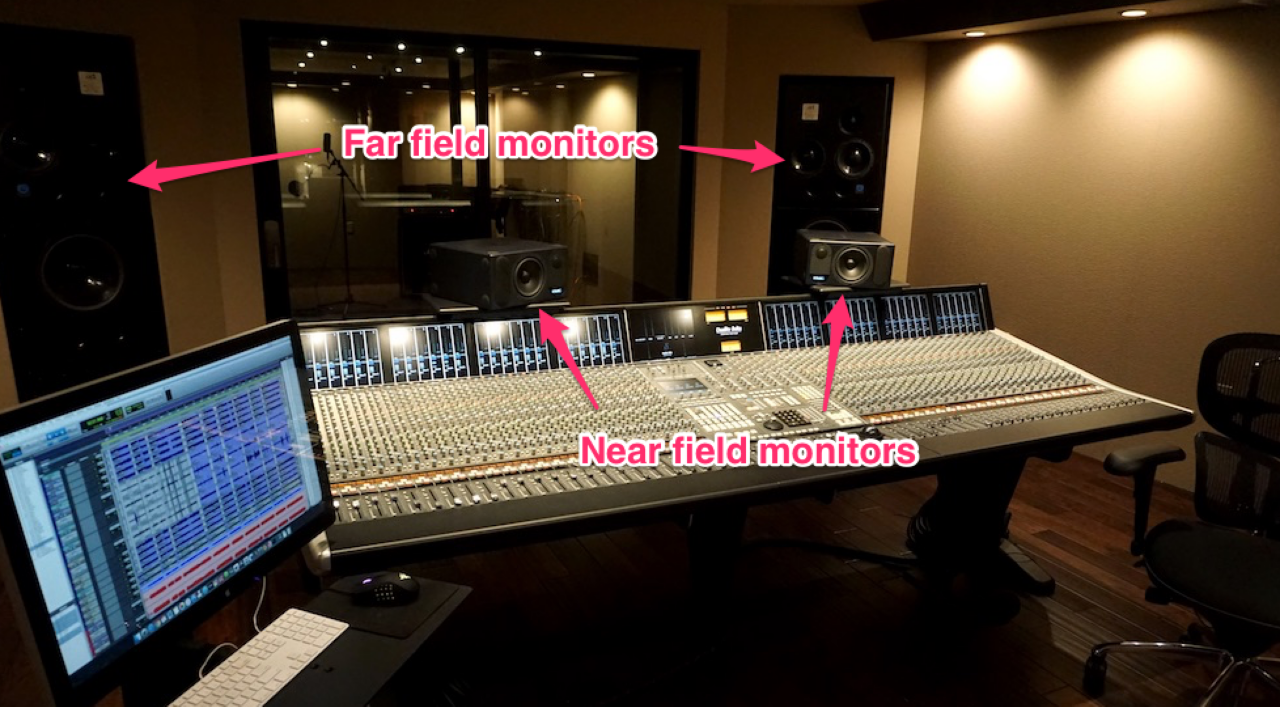

Nearfield Monitoring

What are the mains for?

“There just aren’t many situations where the main monitors sound all that good,” says Chuck Ainlay. “The mains in most studios are intended primarily for hyping the clients and playing real loud.”

“I don’t use the big monitors in studios for anything,” says Nigel Godrich, “because they don’t really relate to anything.”

Recommended Studio Monitors

Monitor Stands and Isolation

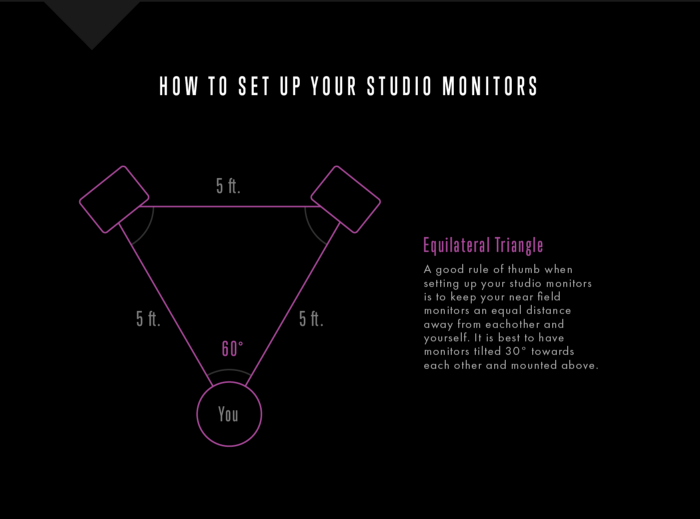

Speaker Positioning Essentials

Aim speakers directly at listening position for accurate high frequencies
Phase and comb filtering alter sound when signals misalign
Vertical alignment prevents comb filtering at crossover frequencies
Driver misalignment affects critical mid-range (vocals, snare drums)

Precise speaker positioning is essential. Speakers should be aimed directly at the listening position to ensure accurate high-frequency reproduction, as high frequencies are more directional and can be obscured by obstacles.
Phase and comb filtering significantly affect audio quality. When two identical audio signals are slightly out of alignment, phase cancellation occurs, altering the sound’s tonality. This effect is especially pronounced with complex, real-world sounds like music.
Vertical alignment of speakers is crucial due to the waveguide effect and the positioning of multiple drivers in nearfield monitors. Misalignment can result in comb filtering, particularly around crossover frequencies, affecting mid-range frequencies.
Comb filtering is a critical issue in two-driver nearfield monitors. Misalignments between the woofer and tweeter can cause frequency cancellations in the sensitive mid-frequency range, impacting critical sound elements like vocals and snare drums.
