Other Enhancement Techniques

Forensic Audio Analysis — Week 9

Today’s Topics

Enhancement order of operations
Spectral subtraction methods
Deep learning for audio
Specialized enhancement techniques

I. The Zjalic Processing Framework

Let’s start with something that might seem obvious but is actually one of the most important concepts in forensic enhancement: the order in which you apply your tools matters enormously.

In 2017, James Zjalic formalized this into a structured framework in his master’s thesis at the University of Colorado Denver’s National Center for Media Forensics.
Think of it like cooking — you wouldn’t frost a cake before baking it. Each step prepares the signal for the next one.
If you apply tools in the wrong order, one algorithm can confuse or undo the work of another.
Zjalic’s testing showed that following this specific order produces statistically superior results, verified with objective metrics like PESQ and LLR.
Citation: Zjalic, J. (2017). A Proposed Framework for Forensic Audio Enhancement. Master’s thesis, University of Colorado Denver, Recording Arts Program (NCMF).

Why Order Matters

Each step feeds the next
Wrong order degrades results
Later tools depend on earlier fixes
Like following a recipe

The output of one processor becomes the input for the next. That means if you skip a step or do things out of order, you can actually make the recording worse.

Imagine trying to remove background music from a recording, but you’ve already applied noise reduction. The noise reduction changed the characteristics of the music, so now your music removal tool can’t recognize it properly.
Each stage is designed to clean up specific problems so the next stage can work more effectively.
Zjalic’s thesis demonstrated this empirically — he tested different orderings and showed that this specific sequence produced the best objective scores.
The framework built on foundational work from the NCMF and earlier research by Ledesma (2015) in forensic image enhancement.
Citation: Zjalic, J. (2017). A Proposed Framework for Forensic Audio Enhancement. Master’s thesis, CU Denver (NCMF).

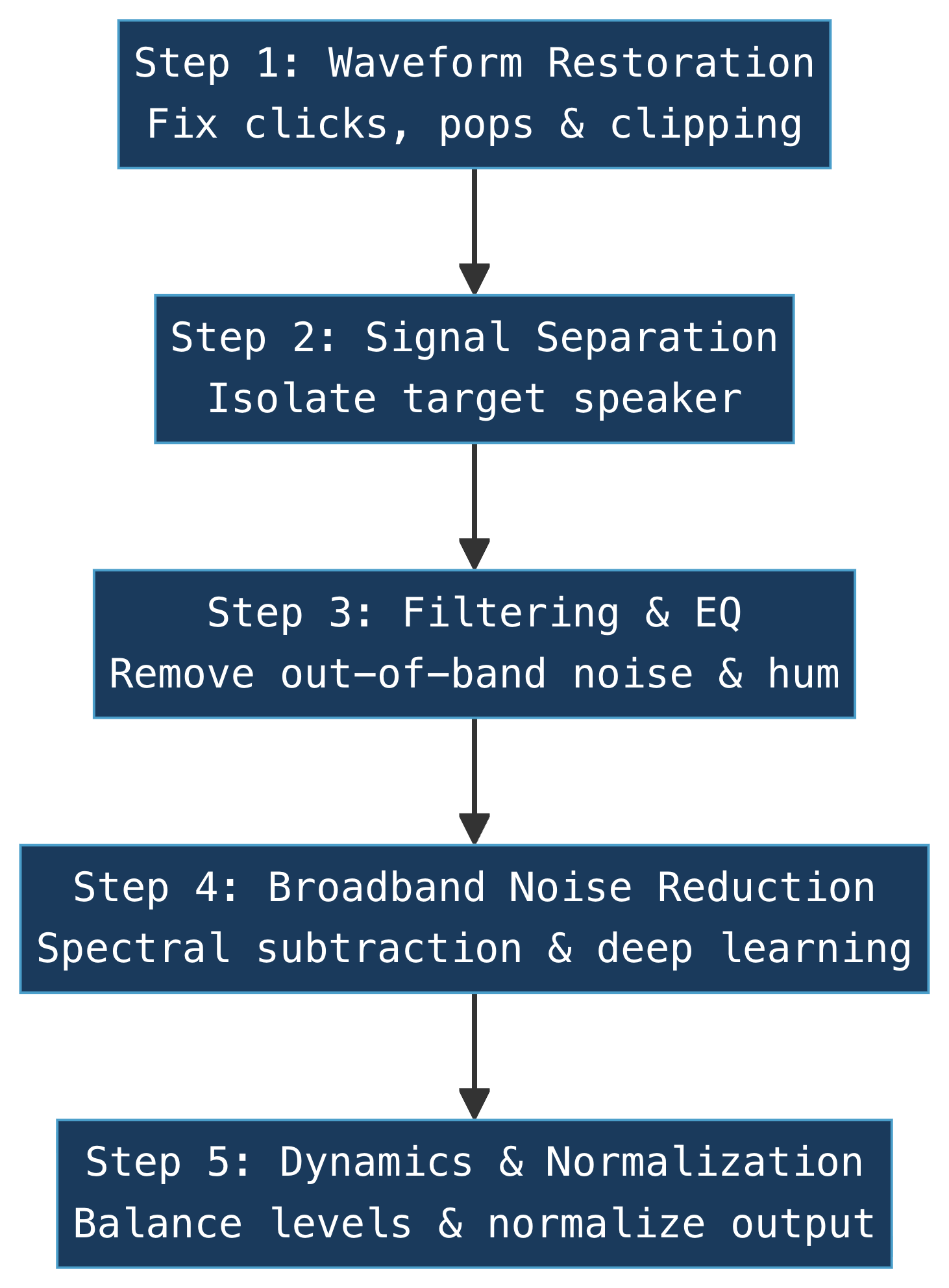

Diagram showing the five steps of the Zjalic Processing Framework in order, with arrows indicating the flow from one step to the next

Step 1: Waveform Restoration

Fix clicks, pops, and clipping
Repair damaged waveform peaks
Uses interpolation and spectral repair
Must happen first

The very first thing you do is fix any physical damage to the waveform itself — clicks, pops, and clipped peaks.

De-clicking removes short transient noises. Think of the crackle on a vinyl record. These are distracting and can confuse later algorithms.
De-clipping repairs waveforms that were “squared off” because the recording device couldn’t handle how loud the signal was — like when someone shouts directly into a body mic.
Why first? These glitches are unpredictable. If you leave them in, future processors might use the click to incorrectly predict what comes next, reducing their effectiveness.
The repair methods are straightforward: linear interpolation draws a line between the good samples on either side of the damage, and spectral repair rebuilds the damaged area based on surrounding audio.
Citation: Maher, Robert C. Principles of Forensic Audio Analysis. Springer, 2018.

Step 2: Signal Separation

Isolate the target speaker
Subtract known interference sources
Requires original bit-stream integrity
Must precede heavy filtering

Once the waveform is physically repaired, the next step is to try to separate the voice you care about from everything else.

There are two main approaches here. Blind Source Separation tries to mathematically untangle mixed signals — like pulling apart two conversations happening at once.
Reference Cancellation is more precise: if you have an exact copy of the background interference — say the specific song playing on a TV — you can align it and subtract it out.
Why does this come early? These algorithms rely on the recording being as close to the original as possible. If you’ve already applied filters and noise reduction, you’ve changed the mathematical relationships between the samples, and the reference track can no longer line up properly.
We’ll cover reference cancellation in detail in Section IV.
Citation: Maher, Robert C. Principles of Forensic Audio Analysis. Springer, 2018.

Step 3: Filtering and EQ

Remove out-of-band noise
Notch out hum and tones
Define the speech bandwidth
Recap from Week 8

Step 4: Broadband Noise Reduction

Addresses complex background noise
Spectral subtraction or deep learning
Automatic, adaptive techniques
Most effective after manual filtering

Step 5: Dynamics and Normalization

Balance volume across speakers
Boost quiet speech, tame loud peaks
Normalize to standard playback level
Always the final step

Discussion

What happens if you skip a step?
Why must separation come before filtering?
Could you ever justify a different order?

II. Spectral Subtraction

The Basic Idea

Recording = speech + noise
Estimate the noise alone
Subtract noise from recording
What remains is cleaner speech

Spectral subtraction starts from a simple assumption: your noisy recording is just clean speech with noise added on top. If you can figure out what the noise sounds like by itself, you can subtract it out.

Here’s how it works in practice. The algorithm looks for moments of silence in the recording — pauses between words — where only the background noise is present.
It takes a “snapshot” of that noise pattern using something called a Voice Activity Detector, which identifies when nobody is talking.
Then it subtracts that noise pattern from the entire recording, frame by frame.
The result is an estimate of the clean speech. It’s not perfect, but it can dramatically improve intelligibility.
Think of it like this: if you know what the hum of an air conditioner sounds like, you can mentally “tune it out.” Spectral subtraction does this mathematically.

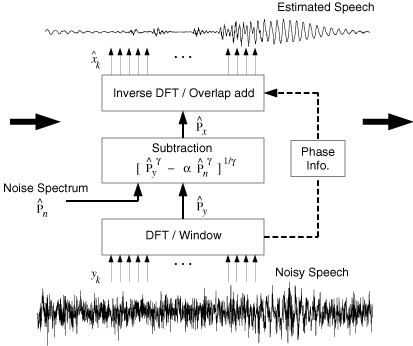

Let’s walk through this diagram from bottom to top — it shows the full spectral subtraction pipeline.

At the bottom you see the noisy speech waveform — that messy, spiky signal is what the microphone captured.
It first passes through a DFT/Window block, which chops the audio into short overlapping frames and converts each one from a waveform into a frequency spectrum. This is how we go from “sound over time” to “which frequencies are present right now.”
The noise spectrum on the left — that’s the noise profile estimated from the silent pauses. It represents what the background noise looks like in the frequency domain.
The middle Subtraction block is where the magic happens: it takes the noisy spectrum, subtracts the noise estimate scaled by a factor alpha, and raises it to a power gamma. That formula controls how aggressively noise is removed.
The Phase Info box on the right feeds in the original phase — the timing information from the noisy signal. Spectral subtraction only changes the magnitudes, not the phase.
Finally, the Inverse DFT / Overlap-add block at the top converts everything back from frequencies into a waveform — and you can see the result: a much cleaner estimated speech signal at the top.
The key takeaway: noisy waveform goes in the bottom, gets split into frequencies, noise is subtracted in the frequency domain, and a cleaner waveform comes out the top.

How It Works (Simplified)

Find silent moments — noise only

Build a “noise profile” from those moments

Subtract the profile from every frame

Fix any negative values (set to zero)

Reconstruct the cleaned audio

The Musical Noise Problem

Subtraction creates random artifacts
Short tones that flicker on and off
Sounds like “birdies” or digital chirping
Can be worse than original noise

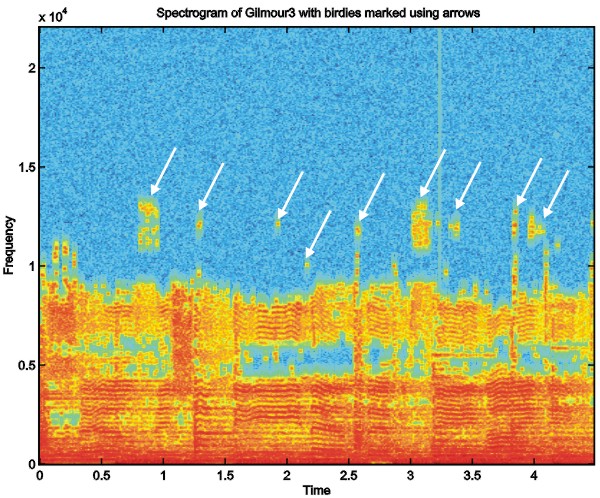

Spectrogram showing the presence of musical noise artifacts, with random bright spots scattered across the frequency spectrum indicating tonal artifacts left by basic spectral subtraction

Artifacts in frequency and their variation in time (“Birdies”)

Fix 1: Over-Subtraction

Remove more noise than estimated
Trades some speech for less artifact
Adjustable “aggressiveness” factor
Adapts based on noise level

Fix 2: Multi-Band (MBSS)

Splits audio into frequency bands
Each band gets its own settings
Handles uneven noise better
More accurate than one-size-fits-all

The next improvement recognizes that real-world noise isn’t the same at every frequency. Traffic rumble is mostly low-frequency. Air conditioning hiss is mostly high-frequency. A single subtraction setting can’t handle both well.

Multi-Band Spectral Subtraction divides the spectrum into several bands — typically four or five — and applies spectral subtraction independently in each one.
Each band gets its own subtraction factor tuned to the noise characteristics in that frequency range.
This is much more accurate for “colored” noise — noise that affects some frequencies more than others, which is basically all real-world noise.
An improved version called I-MBSS can even update the noise estimate in real time without needing explicit silence frames, which is important for recordings where people talk continuously with few pauses.

Fix 3: Geometric Approach

Uses phase information (others ignore it)
Smoother, more natural result
Eliminates musical noise effectively
More mathematically sophisticated

The Geometric Approach takes a fundamentally different mathematical path. Most spectral subtraction methods throw away the phase information — the timing relationship between the speech and the noise — and that’s actually what causes a lot of the musical noise artifacts.

The GA keeps that phase information and models the noisy signal as a vector sum — think of it like adding arrows on a map instead of just adding numbers.
The result is a much smoother gain function, which means the output sounds more natural and musical noise is virtually eliminated.
The downside is that it’s more computationally expensive, but for forensic work where quality matters more than speed, that’s a worthwhile tradeoff.
In comparative studies, the Geometric Approach consistently produces cleaner results with fewer artifacts.

Measuring Success

STI: best for rooms and linear systems
STOI: best for digital enhancement
PESQ: quality only, not intelligibility
Seg.SNR: local signal quality per frame

How do we know which variant works best? We need objective metrics — numbers, not opinions. And importantly, we need the right metric for the right job.

Last week we focused on STI — the Speech Transmission Index. STI measures intelligibility by testing how well modulation patterns survive a transmission channel. It’s excellent for linear problems: room acoustics, additive noise, filtering, reverberation. But here’s the catch — STI is a poor predictor for speech that has been through non-linear processing like spectral subtraction. It can miss distortions introduced by noise reduction algorithms and give misleadingly optimistic scores.
That’s where STOI comes in — Short-Time Objective Intelligibility. STOI was specifically designed to handle non-linear processing. Instead of using test signals like STI, it works directly on actual speech. It compares the temporal envelopes of the original clean signal and the processed version in short segments, about 386 milliseconds long, and calculates how well they correlate. A score of 0 means no correlation; 1 means perfect match.
The key difference: STI tells you how a room or phone line affects clarity. STOI tells you how a digital enhancement algorithm affects a listener’s ability to understand words. For evaluating spectral subtraction and other noise reduction methods, STOI is considered the only unbiased predictor of intelligibility.
PESQ measures perceived quality — how natural and pleasant the speech sounds — not how many words you can understand. Remember the paradox from last week: a recording can score high on PESQ and low on intelligibility.
Segmental SNR evaluates quality in short frames of 20 to 30 milliseconds, catching local problems an overall average might miss.
Bottom line: use STI for evaluating acoustic environments, STOI for evaluating enhancement algorithms, and never rely on PESQ alone for forensic decisions.

Discussion

Why can’t we perfectly estimate noise?
When would musical noise matter in court?
Which variant would you choose and why?

Let’s think about this critically.

“Why can’t we perfectly estimate noise?” — Because noise changes over time. A car drives by, a door opens, someone shifts in their chair. The noise profile from one silence gap may not match the noise in the next speech segment. The estimate is always an approximation.
“Musical noise in court” — Imagine the jury hears chirping artifacts in the enhanced recording. Opposing counsel could argue the examiner introduced sounds that weren’t originally there — potentially grounds for challenging admissibility. The examiner needs to explain that these are processing artifacts, not added content.
“Which variant?” — There’s no single right answer. MBSS is a good general-purpose choice. The Geometric Approach is best when musical noise is unacceptable. Basic spectral subtraction might be fine for mildly noisy recordings where artifacts won’t be significant.

III. Deep Learning for Enhancement

What Is Deep Learning?

Computer learns from examples
Trained on thousands of audio pairs
Input: noisy recording
Output: cleaned version
No explicit rules needed

Diagram illustrating the deep learning pipeline for audio enhancement, showing a noisy audio input being processed by a neural network to produce a cleaner output, with the network represented as a black box

Source: Block diagram of the active noise cancellation headphone based on the CNN-based SFANC

This diagram shows a real-world example of deep learning applied to noise cancellation — specifically, a CNN-based active noise cancellation headphone system. Let’s walk through it.

On the left ear cup, you can see a reference microphone (R) that picks up the outside noise, a speaker (S) that plays audio, and an error microphone (E) that checks how well the noise was cancelled.
Below the headphone on the left is the “Online Control” system — it has a filter library stored in memory with multiple pre-trained noise cancellation filters (W1 through WN). The controller selects the right filter based on what kind of noise it detects.
On the right side, a mobile phone handles the “Co-processing.” This is where the CNN lives. It pre-processes the incoming noise signal, runs it through the Convolutional Neural Network, and outputs a control filter index — essentially telling the headphone which filter from its library is the best match for the current noise environment.
The two sides communicate over a wired or wireless connection. The phone’s CNN does the heavy computational work of classifying the noise type, while the headphone applies the selected filter in real time.
This is a great example of how deep learning works in audio: the CNN was trained on many different noise environments, and now it can quickly recognize and respond to new ones it encounters in the real world. The same principle applies to forensic audio — train on examples, then deploy to handle new recordings.

Three Key Architectures

Convolutional Neural Network (CNN) — finds patterns in frequency

Recurrent Neural Network (RNN)/Long Short-Term Memory (LSTM) — tracks patterns over time

Convolutional Recurrent Network (CRN) — combines both strengths

There are three main types of neural networks used for audio enhancement. Think of them as specialists with different skills.

CNNs — Convolutional Neural Networks — are pattern finders. They look at the audio as an image (a spectrogram) and find spatial patterns like the shape of a vowel or the signature of a gunshot. They’re great at recognizing what something is.
RNNs and LSTMs — Recurrent Neural Networks and Long Short-Term Memory networks — are sequence trackers. They remember what happened before and use that context to predict what comes next. They’re great at understanding how sounds evolve over time.
CRNs — Convolutional Recurrent Networks — are hybrids that combine both abilities. They can recognize patterns AND track how those patterns change over time. This makes them the most versatile option and the current state of the art for real-time audio enhancement.

Neural In-Painting

Fills in damaged audio segments
Like photo restoration for sound
Rebuilds missing speech patterns
Trained on clean/noisy audio pairs

One of the most impressive deep learning applications is neural in-painting — reconstructing corrupted or missing parts of a recording.

Think of how photo restoration software can fill in a scratch on an old photograph. Neural in-painting does the same thing for audio.
The system is trained on pairs of clean and damaged audio. It learns what speech “should” look like in a spectrogram, and when it encounters a gap or corrupted section, it fills it in based on the surrounding context.
A specific technique called the IDCNN — Impulse Detection Convolutional Neural Network — can identify exactly which samples are corrupted and replace only those, leaving the good audio untouched. It creates a “noise map” marking the damaged spots, then uses neural interpolation to repair them.
This is particularly useful for recordings with intermittent interference — bursts of static, digital dropouts, or impulsive noises that obscure short sections of speech.

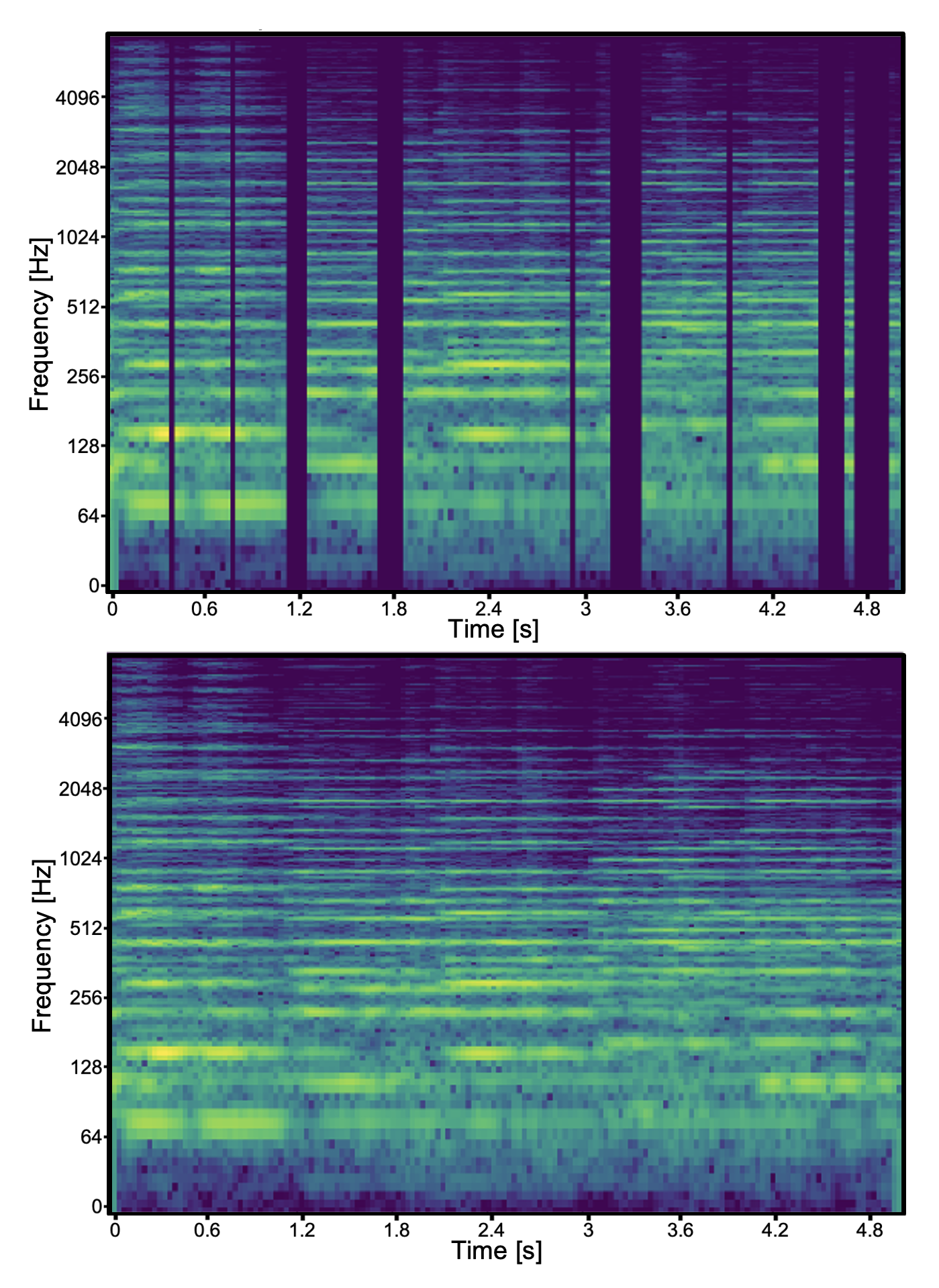

Neural In-Painting Example

Detecting Dangerous Sounds

Gunshots, explosions, breaking glass
CNN-RNN hybrids detect signatures
Over 96% accuracy reported
Critical for security and evidence

Deep learning isn’t just for cleaning up speech. It’s also used to detect and classify dangerous acoustic events — things like gunshots, explosions, and breaking glass.

These hybrid CNN-RNN models analyze audio in real time, looking for the unique spectral signatures of dangerous events.
A gunshot has a very distinctive pattern: an extremely fast transient followed by a specific decay shape. An explosion looks different from a car backfire, and the neural network can learn to tell them apart.
Research shows these systems can achieve accuracy rates above 96%, even in noisy urban environments with lots of background sound.
For forensics, this has applications in surveillance audio analysis, shot detection systems, and crime scene reconstruction — helping determine how many shots were fired, from what direction, and in what sequence.

DL vs. Traditional Methods

	Traditional	Deep Learning
Noise types	Stationary	Any
Artifacts	Musical noise	Fewer
Explainability	High	Low
Court-ready	Established	Emerging

So should forensic examiners switch entirely to deep learning? Not necessarily. There are real tradeoffs.

Traditional methods like spectral subtraction work best with stationary noise — noise that stays roughly constant. Deep learning handles non-stationary noise much better because it learned from diverse real-world examples.
Traditional methods can introduce musical noise artifacts. Deep learning generally produces fewer artifacts and more natural-sounding results.
But here’s the key forensic concern: traditional methods are transparent and explainable. You can describe exactly what a spectral subtraction algorithm did. Deep learning is a “black box” — explaining to a jury what a neural network did to the evidence is much harder.
Traditional methods have decades of acceptance in courts. Deep learning is still establishing its legal track record.
The practical answer for most examiners today: use traditional methods as the primary tool, with deep learning as a supplement when traditional methods fall short.

Discussion

Can you trust a “black box” with evidence?
How would you explain DL to a jury?
What’s the risk of AI “hallucinating” speech?

These are some of the most important questions facing the field right now.

“Trust a black box” — Under Daubert, expert testimony must be based on testable, peer-reviewed methods. Can a neural network meet that standard if we can’t fully explain what it does? Some argue yes, because the results are testable and reproducible. Others say no, because the process isn’t transparent.
“Explain DL to a jury” — An examiner might say: “I used a computer system that was trained on thousands of recordings to recognize and remove noise patterns. The specific system has been validated in published research.” But opposing counsel will push back: “How do you know it didn’t change the words?”
“AI hallucination” — This is the nightmare scenario. If a neural network “fills in” speech that wasn’t actually there, it could fabricate evidence. This is why in-painting and neural enhancement must always be validated against the original recording, and why the original must always be preserved and presented alongside the enhanced version.

IV. Specialized Techniques

Reference Signal Cancellation

Identify background interference source
Obtain clean copy of that source
Align and subtract it out
Isolates the target speech

Reference cancellation is one of the most powerful techniques available when the conditions are right. The idea is straightforward: if you know exactly what the background noise is, you can subtract an exact copy of it.

Picture this scenario: a suspect is recorded in a bar, and loud music is drowning out the conversation. If you can identify the exact song that was playing and get a clean copy, you can mathematically subtract the music from the recording, leaving just the voices.
This works for TV shows, radio broadcasts, public announcements — anything where a clean original exists somewhere.
The challenge is alignment. The music in the evidence recording has been colored by the room — reverb, frequency response of the microphone, distance from the speaker. The examiner has to match the sample rates, align the timing precisely, and correct for these acoustic differences.
Down-sampling is critical: you must make sure the reference track doesn’t introduce frequencies that weren’t in the original capture.
Citation: Maher, Robert C. Principles of Forensic Audio Analysis. Springer, 2018.

Acoustic Fingerprinting

Software identifies audio recordings
Like Shazam for forensic analysis
Matches frequency peak patterns
Finds the exact interference source

But how do you identify what song or TV show is playing in a noisy recording? That’s where acoustic fingerprinting comes in.

You’ve probably used Shazam on your phone — you hold it up to a speaker and it tells you what song is playing. Forensic acoustic fingerprinting works the same way.
The algorithm analyzes patterns of frequency peaks and their timing relationships to create a unique “fingerprint” of the audio.
It can identify a specific recording even when it’s buried under conversation and room noise.
This is particularly valuable when suspects intentionally play loud music or TV to mask their conversations. The fingerprinting identifies the exact source, the examiner obtains a clean copy, and reference cancellation removes it.
An adaptive filter — specifically a normalized least mean square (LMS) filter — handles the actual subtraction, automatically adjusting to account for room acoustics.

Multiband Compression for Intelligibility

Divides spectrum into hearing bands
Boosts quiet consonants
Reduces loud masking vowels
Reallocates energy for clarity

Last week we covered basic compression. Multiband dynamic range compression, or MB-DRC, takes this further by specifically targeting speech intelligibility.

The signal is split into many frequency bands — typically 24, matching the critical bands of human hearing.
Each band gets separate compression settings. This allows for a clever two-pronged strategy.
Downward compression reduces the loudness of vowels. Vowels carry lots of energy but relatively little information for telling words apart. They can mask the quieter but more important consonant sounds.
Upward compression boosts the soft consonants — the nasals, stops, and word onsets that are crucial for word recognition but easily lost in noise.
The result is speech where the energy has been reallocated to favor the sounds that actually help you understand the words.
This is guided by the Speech Intelligibility Index, or SII, which weights each frequency band by how much it contributes to understanding speech.

Quality vs. Intelligibility Revisited

MB-DRC may sound less natural
But word recognition improves
Forensic goal: understanding, not comfort
Always measure with STOI, not just ears

Selective Noise Cancellation

AI distinguishes speech from noise
Learns individual speaker patterns
Solves the “cocktail party problem”
Used in smart hearing aids

Selective noise cancellation represents a paradigm shift — from removing all noise to intelligently choosing what to keep and what to remove.

Traditional noise reduction treats everything that isn’t speech as interference. But what if there are multiple speakers, and you only care about one of them?
SNC uses deep learning to learn a specific speaker’s vocal characteristics — their unique “fingerprint” — and can isolate that speaker from a crowd.
This is the “cocktail party problem” — how do you follow one conversation in a noisy room? Humans do it naturally; computers have struggled with it until recently.
The primary application right now is smart hearing aids that can focus on the person you’re talking to while suppressing background chatter.
For forensics, the implications are significant: potentially isolating a specific suspect’s voice from a crowded surveillance recording.
These systems can also be configured to preserve critical safety sounds — fire alarms, car horns — while suppressing stationary noise like engine hum.

Discussion

How would you explain reference cancellation to a jury?
What are the ethical limits of speaker isolation?
Could MB-DRC change the meaning of words?

Let’s think about the practical and ethical dimensions.

“Explaining reference cancellation” — You might say: “We identified the song playing in the background, obtained an exact copy, and mathematically removed it — like noise-canceling headphones, but applied after the fact to the recording.” The key is making the process seem logical and transparent, not mysterious.
“Ethical limits of speaker isolation” — If AI can isolate one voice from a crowd, what are the privacy implications? Should law enforcement be able to extract any conversation from any public recording? Where do we draw the line?
“MB-DRC changing meaning” — By boosting consonants and reducing vowels, could you change what a word sounds like? In theory, aggressive processing could shift the perceived onset time of a consonant, potentially changing a “b” to a “p” or a “d” to a “t.” This is why the original must always be preserved and presented.

Key Takeaways

Order matters: restore, separate, filter, reduce, normalize
Spectral subtraction: powerful but watch for artifacts
Deep learning: better results, harder to explain
Always measure, document, and preserve originals

Let’s pull it all together with the key points from today.

The enhancement order of operations isn’t optional — it’s a logical framework where each step prepares the signal for the next. Skipping or reordering steps degrades results.
Spectral subtraction is the workhorse of forensic noise reduction, but basic implementations create musical noise. Improved variants like MBSS and the Geometric Approach address this.
Deep learning offers superior performance, especially for non-stationary noise and complex scenarios, but raises new challenges for courtroom explainability and evidence integrity.
Across all techniques, the fundamentals never change: measure objectively with STOI, document every step, and always preserve and present the original alongside the enhanced version.
Citation: Maher, Robert C. Principles of Forensic Audio Analysis. Springer, 2018; SWGDE Best Practices for Forensic Audio, 2018.

Summary

Advanced tools extend Week 8 foundations
Match technique to the specific problem
Court admissibility requires transparency
Next: forensic transcription and interpretation

Today we’ve expanded your toolkit significantly beyond the basic filtering and dynamics processing from last week.

The enhancement order of operations gives you a framework for applying these tools systematically.
Spectral subtraction and its variants handle broadband noise that filters alone can’t address.
Deep learning pushes the boundaries of what’s possible, but with new responsibilities around transparency and validation.
Specialized techniques like reference cancellation and MB-DRC solve specific problems with surgical precision.
The constant thread through everything: forensic enhancement serves the evidence. Every technique must be measured, documented, and defensible. The original recording is sacred.
Next week we’ll look at what comes after enhancement — forensic transcription and interpretation of the enhanced recordings.
