Audio Enhancement Techniques

Forensic Audio Analysis — Week 8

Today’s Topics

Enhancement assessment and standards
Speech: quality versus intelligibility
Filtering and equalization methods
Gain compression and expansion

What is Forensic Enhancement?

Improve SNR to aid transcription
Not cosmetic — must be measurable
Always work from a verified copy
Document every processing step

I. Enhancement Assessment

Why Assessment Matters

Admissibility requires scientific validation
Enhancement can help or harm evidence
Courts demand repeatability and rigor
Subjective “sounds better” is not enough

Subjective Evaluation

Listeners rate audio as “clearer”
Fast, intuitive, and easily applied
Ratings shaped by expectation and context
Not replicable or standardized

Limits of Subjective Measures

“Sounds better” ≠ more intelligible
Transcript priming distorts listener response
Two listeners may reach different verdicts
Courts expect scientific, not personal, opinion

Objective Metrics

STI — speech transmission fidelity
AI — spectral intelligibility estimate
PESQ — perceived speech quality
WIS — human word identification score

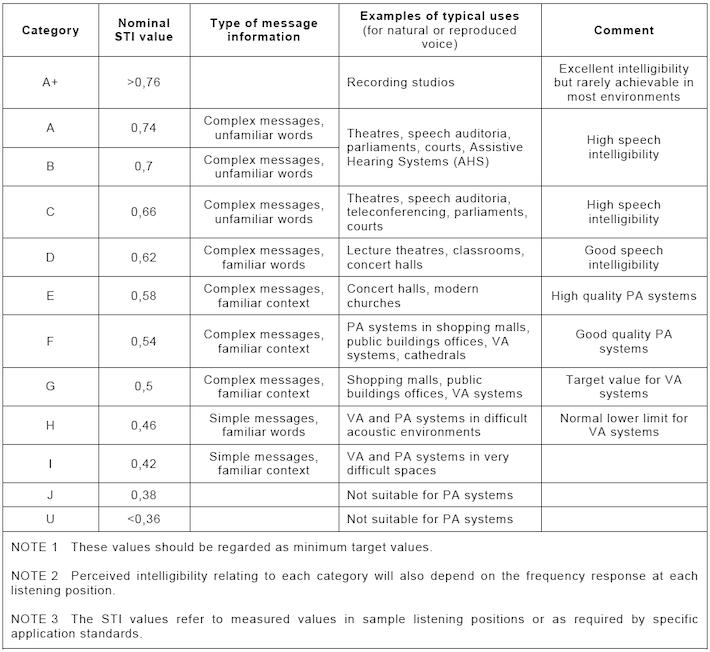

Speech Transmission Index (STI)

Measures intensity modulation preservation
Seven octave bands: 125 Hz – 8000 Hz
96%+ correlation with intelligibility scores
Preferred objective standard for forensics

By Acousticator - Own work, CC BY-SA 3.0, Link

Word Identification Score (WIS)

Human listeners transcribe audio samples
Percentage correct = intelligibility score
Highest validity — but slow and expensive
Most persuasive evidence for courts

Bruce Koenig’s 11-Step Protocol

Evidence marking and chain of custody
Physical inspection of media
Critical listening and waveform review
Spectrographic and digital data analysis
Enhancement applied iteratively, documented

AES & SWGDE Standards

AES27-1996: managing recorded materials
AES43-2000: authenticating analog tapes
SWGDE: digital enhancement best practices
Document every step for court admissibility

Discussion

How do we define “good” enhancement?
When might STI mislead an examiner?
Can subjective testing ever be valid in court?

“Good enhancement” — push students to define this operationally. Is it the examiner’s impression? The STI score? The client’s satisfaction? The answer should be: a measurable increase in a valid intelligibility metric, with no loss to the original evidence.
STI limitations — STI doesn’t fully account for all types of reverberation effects on consonant perception. It also doesn’t capture every form of nonlinear distortion introduced by modern noise reduction algorithms. An examiner who relies solely on STI might miss distortions that harm intelligibility in practice.
Subjective testing in court — it can be valid as a supplement if performed under controlled conditions: multiple trained listeners, blind protocol, no access to transcripts beforehand, results reported with confidence intervals. Some courts have accepted this form of evidence.

II. Speech: Quality vs. Intelligibility

The Core Paradox

Better-sounding ≠ more understandable
Enhancement may destroy speech cues
“Comfort” and “clarity” are different goals

What Makes Speech Intelligible?

Fricatives: /s/, /f/, /sh/ — high frequency
Plosives: /p/, /t/, /k/ — short transients
These cues live in the high-frequency band
Removing “noise” can remove these cues

The Filtering Problem

Filters reduce noise — but at a cost
Fricatives and plosives resemble noise
Aggressive filtering smooths them out
Speech sounds “cleaner” but loses phonemes

PESQ vs. STI: Different Goals

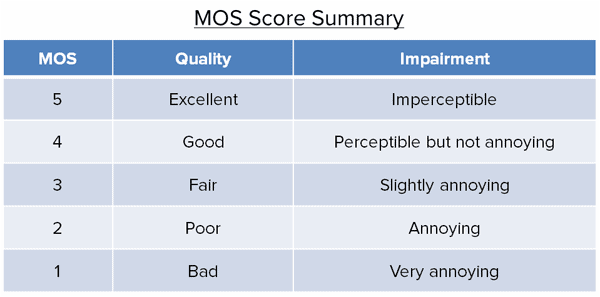

MOS/PESQ quality trend compared with STI intelligibility trend

PESQ — measures naturalness and comfort
STI — measures actual intelligibility
A processed file can score high on PESQ
And simultaneously low on STI

PESQ — Perceptual Evaluation of Speech Quality — was developed for the telecommunications industry to evaluate whether phone calls sound natural.
It is a model of human perception of speech quality, not intelligibility.
MOS — Mean Opinion Score — is a related subjective measure of perceived quality, often used in conjunction with PESQ.
PESQ rewards smooth, natural-sounding audio and penalizes noise, distortion, and harshness.
But here is the problem: a heavily filtered recording will score well on PESQ even when it has lost critical phoneme-identifying fricatives and plosives.
STI is the correct tool for forensic work because it measures whether speech information survives — not whether the audio sounds comfortable.
An examiner who validates enhancement using PESQ alone may be misleading both themselves and the court.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

The Transcript Effect

A written transcript “primes” the listener
Enhanced audio sounds more convincing
Listeners “hear” words that aren’t there
Biggest risk: inaccurate courtroom transcripts

The transcript effect, also called the priming effect, is well-documented in forensic psychology and psycholinguistics.
When listeners receive a written transcript before hearing ambiguous audio, they reliably “hear” the words in the transcript — even when those words are not actually present.
Enhanced audio amplifies this effect. Because it sounds cleaner and more natural, listeners find it more plausible and are more easily guided by the transcript.
The combination of enhanced audio and an inaccurate prosecution transcript is one of the most dangerous conditions for a fair trial.
Listeners have reported hearing specific contested words in enhanced audio — words that were demonstrably absent from spectral analysis of the recording.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

Courtroom Implications

Jurors may treat enhancement as proof
Enhanced audio amplifies priming effects
Present unenhanced original alongside
Expert must explain enhancement limits

Research Evidence

Quality ratings improve with higher SNR
Intelligibility also improves — differently
Rates of improvement diverge at high SNR
“Better audio” is not a reliable proxy

Research confirms that quality and intelligibility improve together at low signal-to-noise ratios — when the audio is very noisy, both perception and understanding are poor.
But as SNR increases to moderate levels, the two measures begin to diverge.
Quality ratings continue to rise — listeners find the audio more comfortable and pleasant.
Intelligibility also rises — but at a different rate, and it can actually decrease if over-processing is applied.
The most dangerous region is when an examiner has a moderately good recording and applies aggressive “cosmetic” enhancement — improving PESQ while hurting STI.
“Better audio” is simply not a reliable proxy for more intelligible audio in the forensic context.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

Discussion

Should enhanced audio be used in court?
How do we protect against transcript priming?
When does enhancement do more harm than good?

“Should enhanced audio be used in court?” — No single right answer. It depends on: whether the enhancement materially changes what is heard; whether it is properly documented and scientifically defensible; whether the original is also presented; whether the jury can be appropriately cautioned. Some scholars argue for a moratorium on enhanced exhibits; others argue for enhanced disclosure requirements.
Protecting against transcript priming — strategies include: playing the original before the transcript is shown; using a sealed transcript that listeners complete before hearing audio; having the expert demonstrate priming effects for the jury explicitly.
- What is sealed transcript? — A sealed transcript is a written document that contains the examiner’s best guess at the content of the recording, but it is not revealed to listeners until after they have heard the audio. This way, listeners cannot be primed by the transcript before hearing the recording.
Enhancement doing more harm than good — The clearest case: STI decreases after processing. In that situation, the examiner should not submit the enhanced version. But it is also subtle: enhancement that improves STI but increases listener susceptibility to priming may still do net harm.

III. Filtering and Equalization

Linear Processing

Band-pass filter frequency response shape

Adjusts gain at specific frequencies
Does not introduce new signals
No synthesis — only attenuation or boost
Forensic advantage: verifiable and reversible

Highpass and Lowpass Filters

Highpass: removes low-frequency rumble
Lowpass: removes high-frequency hiss
Combined: define the speech pass band
Rolloff slope: steep vs. gentle (dB/octave)
ReEQ Demo: control over curve shape and slope

A highpass filter passes frequencies above its cutoff and attenuates frequencies below. It removes: handling noise, HVAC rumble, vehicle vibration, and low-frequency electrical interference — typically everything below 200 Hz.
A lowpass filter passes frequencies below its cutoff and attenuates frequencies above. It removes: broadband hiss and radio frequency interference — typically above 6 to 8 kHz.
When both are applied together, you define the speech pass band.
The rolloff slope, expressed in dB per octave, determines how sharply the filter cuts. A 24 dB/octave slope (4th order Butterworth) is steep; a 6 dB/octave slope is gentle.
Steeper slopes remove more noise but can introduce phase distortion and ringing artifacts near the cutoff frequency. Choose based on the specific noise problem.
Use ReEQ in Reaper for control over curve slope and type.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

Bandpass Filtering

Combines highpass + lowpass filters
Forensic speech band: 200 Hz – 4 kHz
Preserves most vowel and consonant energy
Attenuates rumble, hiss, and interference

The bandpass filter is the workhorse of forensic speech enhancement.
The 200 Hz to 4 kHz range covers the fundamental frequency of human voice — roughly 85 to 255 Hz for males, 165 to 255 Hz for females — and the first several formants.
Most phoneme-identifying information: vowel formants, consonant energy, lives in this band.
The exact cutoffs should always be adjusted per recording. These are guidelines, not absolutes. A recording with significant noise at 350 Hz may require a highpass cutoff of 400 Hz.
Always measure STI before and after bandpass filtering to confirm the chosen band actually improves intelligibility.
Be especially cautious with the upper cutoff: cutting at 3 kHz instead of 4 kHz can remove critical fricative energy.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

Notch Filtering

Extremely narrow bandstop filter
Targets specific interference frequencies
Common: 60 Hz mains hum (US/Canada)
Also: 50 Hz (Europe), fan whines, motor tones

Mains Hum: 60 Hz and Harmonics

Fundamental: 60 Hz
Harmonics: 120, 180, 240 Hz, continuing…
Each harmonic needs its own notch
Harmonics can extend into the speech band

Electrical mains hum is not a single tone. It is a harmonic series — a set of tones at integer multiples of the fundamental frequency.
In the US: 60, 120, 180, 240, 300, 360 Hz, and so on. Each requires its own notch filter.
At 240 Hz, 300 Hz, and beyond, the harmonics fall squarely within the speech band — making careful notching essential.
A notch at 240 Hz that is slightly too wide may also remove the second formant of certain vowels, degrading intelligibility.
Always verify using a spectrogram that the notch is applied only to the interference peak and not to adjacent speech energy.
The number of harmonics visible in the spectrogram depends on the severity of the interference source — in some recordings, harmonics extend to 1 kHz or beyond.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

Consonant Boost: 1–4 kHz

Boosts consonant spectral peaks
Targets phoneme-distinguishing frequencies
Helps distinguish /d/ vs /t/, /b/ vs /p/
Apply carefully: avoids noise amplification

EQ and Filter Workflow

Analyze spectrogram: identify interference
Apply cuts before boosts
Iterate: listen, measure STI, adjust
Document each step and parameter setting

This is the standard iterative workflow for forensic EQ and filtering.
Step 1: Full spectrogram analysis before touching anything. Identify all visible interference: tonal lines, broadband noise floors, transient interference, and the approximate frequency extent of the speech content.
Step 2: Apply targeted cuts first — highpass, then notch filters — before attempting any boosts. Reducing interference before boosting prevents amplifying noise.
Step 3: Measure STI after each step. If a filter step reduces STI, undo it.
Step 4: Document every filter parameter — type, cutoff frequency, Q/bandwidth, slope, gain. These must appear in the written examination report.
Step 5: Produce a final frequency response plot showing the cumulative effect of all filters applied.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

Discussion

What frequencies can you never remove?
Why might notching harmonics cause problems?
How does EQ interact with the paradox?

“Frequencies you can never remove” — Key answer: high-frequency fricatives above 4 kHz for /s/ and /sh/; plosive transient bursts; second and third formant energy from 1 to 3 kHz. A lowpass filter that cuts at 3.5 kHz may sound reasonable but will degrade discrimination of sibilant consonants.
Harmonics causing problems — If a harmonic at 180 or 240 Hz is in the speech band, a too-wide notch filter centered on that harmonic may also remove formant energy from vowels, particularly for male speakers whose fundamental and second harmonic fall in this range. Always use narrow notch filters with high Q values.
EQ and the paradox — Aggressive EQ can produce the same paradox as noise reduction: a boost at 2 kHz may sound dramatically clearer while subtly removing important temporal contrast in stop consonant Voice Onset Time cues. The spectrogram and STI will reveal this. Ear impressions will not.

IV. Gain Compression and Expansion

Dynamic Range in Forensic Recordings

Surreptitious recordings vary wildly
Distant speakers: very low amplitude
Loud events: may clip or saturate
Dynamics processing normalizes the range

When implemented, the waveform image here illustrates the dynamic range problem directly — the visual contrast between barely-visible quiet speech and loud events is striking.
Recordings made in pockets, handbags, or inside vehicles are especially prone to this: the microphone may be partially occluded, varying in proximity to different speakers throughout the recording.
Consumer recording devices with built-in AGC can introduce their own artifacts — sudden gain jumps that sound unnatural and may be mistaken for edits.
The goal of forensic dynamics processing is to make all voices consistently audible — not to change what was said, not to edit out sections, but simply to bring everything to a usable listening level.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

AGC and Compression

AGC: auto-adjusts gain to normalize loudness
Boosts quiet talkers, reduces loud ones
Compression: ratio-based gain reduction
Above threshold: input reduced by set ratio

Key Compression Parameters

Threshold: level where gain reduction starts
Ratio: input:output relationship (e.g., 4:1)
Attack: how fast compression engages
Release: how fast compression disengages

These four parameters completely determine a compressor’s behavior, and all four must be documented in the examination report.
Threshold: typically set at a level just above the average noise floor but below the average speech level. If too high, the compressor never engages on quiet speech; if too low, it over-processes everything.
Ratio: forensic use typically employs moderate ratios of 2:1 to 4:1. Ratios above 10:1 are limiting rather than compression and can cause significant coloration.
Attack: too fast an attack time — under 1 ms — can clip the initial transients of plosives, destroying the burst cues that distinguish stop consonants. Too slow allows peaks to pass unconstrained.
Release: too short a release time is the primary cause of the pumping artifact we will examine next.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

The Pumping Problem

Excessive compression causes “pumping”
Background noise rises between words
Short release times make it worse
Pumping degrades intelligibility and credibility

Pumping is one of the most recognizable and problematic compression artifacts in forensic audio.
It occurs when the compressor’s release time is shorter than the inter-word gap durations in the recording.
What happens: speech ends, the compressor’s gain “pumps up” — boosting background noise — then snaps back down when the next word begins.
The result is a rhythmic swelling of noise between words, which listeners find distracting and confusing.
Beyond the perceptual problem, pumping creates a credibility problem in court: opposing counsel may suggest the noise surges indicate editing or tampering.
Always check for pumping by listening carefully to silences between words, and by examining the waveform for the characteristic envelope pattern.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

Expansion and Noise Gating

Expansion: reduces gain below threshold
Noise gate: hard mute below threshold
Silences background noise between utterances
Less destructive than silence-cut editing

Expansion is the dynamic complement of compression. Where a compressor reduces loud signals above a threshold, an expander reduces quiet signals below a threshold.
A noise gate is an extreme expander with a very high ratio — it cuts the signal essentially to silence when the level falls below the threshold.
The primary forensic use is to silence distracting background noise during the silent intervals between speech utterances: road noise, HVAC, air handling, and similar continuous interference.
Compared to manually cutting silences in an audio editor, gating is more defensible because it does not create splices in the waveform and responds automatically based on signal level.
However, incorrect threshold setting can produce effects that are worse than the original problem.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

Threshold: A Critical Setting

Too low: background noise passes through
Too high: word onsets and offsets clipped
Onset clipping destroys critical phoneme cues
Verify gate behavior with spectrogram

Setting the gate threshold is one of the most consequential decisions in forensic dynamics processing.
If the threshold is set too low, the gate passes background noise along with speech — defeating the purpose.
If the threshold is set too high, the gate fires during the quiet onset of words — clipping the beginning of speech segments before they reach the threshold.
Word onsets are acoustically critical: they contain the plosive bursts and fricative onsets that distinguish many minimal pairs in English.
Clipping “buy” vs. “die”, or “shoot” vs. “suit” at the onset destroys the distinguishing phoneme entirely.
Best practice: use the spectrogram and waveform together to visually verify that the gate opens before speech begins and closes after speech ends. Listen at high zoom for chopped word beginnings.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

Multiband Dynamics

Separate compression per frequency sub-band
Each band has its own threshold and ratio
Useful for recordings with strong reverberation
More surgical than broadband compression

A multiband dynamics processor divides the full frequency spectrum into separate bands — typically 3 to 5 — and applies independent compression or expansion to each.
This is useful when different frequency ranges have very different dynamic range problems.
For example, in a reverberant room, the low-frequency energy may be highly variable and boomy, while the high-frequency speech range is relatively steady.
A multiband compressor can address the low frequencies aggressively without compressing the already-manageable high-frequency content.
Multiband processing is more powerful than broadband compression but also more complex to document fully for court — each band’s threshold, ratio, attack, and release must be recorded separately.
Citation: Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

Discussion

When would AGC hurt speaker recognition?
How do you detect over-compression?
Should noise gating be used for court evidence?

AGC hurting speaker recognition — AGC normalizes loudness, which removes prosodic cues (pitch dynamics, stress patterns, speaking rate) and level-dependent spectral characteristics that automatic speaker recognition systems depend on. If a recording has been AGC-processed, the examiner must disclose this to the speaker recognition analyst. AGC can reduce the distinctiveness of a speaker’s voice dynamics, making speaker comparison more difficult.
Detecting over-compression — Listen for pumping artifacts. Look in the waveform for “brick wall” amplitude ceilings where peaks are unnaturally flat. Look for STI degradation after compression is applied. Check the spectrogram for the signature pattern of noise surges between words. These are the objective markers.
Gating for court evidence — Defensible with full documentation and verification. Some examiners use gating only during their own analysis phase and submit an ungated exhibit to the court. Others gate the exhibit but provide the original alongside it. The key: if gating clips any word onsets, the exhibit must not be submitted without disclosure.

Enhancement: Guiding Principles

Always work from a verified copy
Iterate: measure STI after each step
Document every process and parameter
Present original alongside enhanced version

These four principles form the procedural framework for all forensic audio enhancement work.
Verified copy: the original evidence file must be preserved intact throughout. All processing occurs on a certified bitstream copy.
Iterate and measure: never apply multiple processes at once. Apply one step, measure STI, verify improvement, then proceed. This creates a clear record and allows individual steps to be challenged or reversed.
Document everything — type, frequency, Q, gain, ratio, threshold, attack, release — every parameter of every process, in order, with timestamps.
Present both: the court and the opposing expert must have access to both the original and the enhanced version. The enhanced version is an analytical aid, not a replacement for the original evidence.
Citation: Maher, Robert C. Principles of Forensic Audio Analysis. Springer, 2018; SWGDE Best Practices for Forensic Audio, 2018.

Key Takeaways

Assessment: objective metrics, not impressions
Paradox: quality ≠ intelligibility
Filtering: protect speech-critical frequencies
Dynamics: threshold setting is high-stakes

A concise summary of the four sections.
Assessment: STI and WIS are the tools of record. Subjective impressions are unreliable and not court-defensible on their own.
The paradox: every enhancement decision carries a risk of harming the intelligibility it is trying to improve. Measure before and after every step.
Filtering: the speech band is not just a frequency range — it contains irreplaceable phoneme cues. Cutting too aggressively destroys the evidence of what was said.
Dynamics: the threshold is not a detail. It is the most consequential single setting in the dynamics processing chain. Set it wrong and you may clip the very phonemes the jury needs to hear.
Citation: Maher, Robert C. Principles of Forensic Audio Analysis. Springer, 2018; SWGDE Best Practices for Forensic Audio, 2018; Forensic Audio Analysis — Comprehensive Guide (NotebookLM source).

Summary

Four pillars: assess, filter, compress, verify
Court-ready: documented, measured, defensible
Tools serve the evidence — not the other way
Next: speaker recognition and transcription
